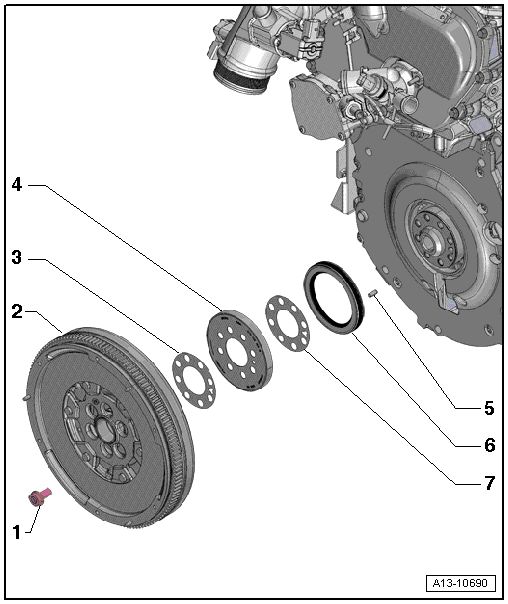

Overview - Flywheel
WARNING: This page is about a different car, the 2018 Audi TT Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 60 Nm +90°
- Replace after removing.
- Flywheel
- Removing and installing. Refer to FLYWHEEL, REMOVING AND INSTALLING .
- Only possible to install in one position
- Friction Disc (Diamond Disc)
- Replace the flywheel after the bolts are loosened
- For connection security between the flywheel, sensor wheel and crankshaft stub
- Only possible to install in one position
- Sensor Wheel
- For the Engine Speed Sensor -G28-
- Risk of destroying due to the influence of magnetic force. Refer to There is a risk of destroying the sensor wheel by magnetic force. .
- Check the sensor wheel. Refer to SENSOR WHEEL, CHECKING .
- Only possible to install in one position
- Perform the adaptation after removing or replacing. Refer to Vehicle Diagnostic Tester 01 - Engine electronics, functions , J623 - Engine electronics, functions
- Alignment Pin
- Seal
- For the crankshaft
- Replacing. Refer to CRANKSHAFT SEAL, REPLACING, TRANSMISSION SIDE .
- Friction Disc (Diamond Disc)
- For connection security between the flywheel, sensor wheel and crankshaft stub
- Replace the flywheel after the bolts are loosened
- Only possible to install in one position
