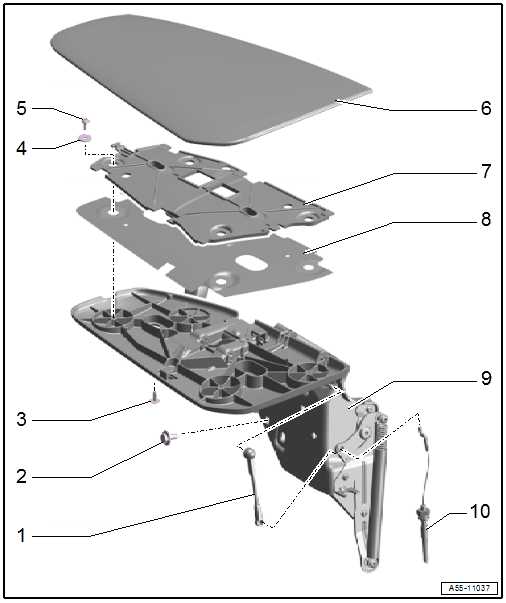

Overview - Convertible Top Frame Flap

Courtesy of AUDI OF AMERICA, LLC

1. Actuator Rod
2. Bolt
   • Tightening specification and sequence. Refer to Fig 1.
   • Quantity: 3
3. Bolt
   • 1 Nm
4. Washer
   • Quantity: 4
5. Bolt
   • 2 Nm
   • Quantity: 4
6. Trim
   • Removing and Installing. Refer to CONVERTIBLE TOP FRAME FLAP TRIM, REMOVING AND INSTALLING .
7. Retaining Plate
   • Removing and Installing. Refer to CONVERTIBLE TOP FRAME FLAP BASEPLATE, REMOVING AND INSTALLING .
   • Adjusting. Refer to Side and Length Adjustment on the Baseplate: .
8. Film Antenna
   • Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS .
9. Convertible Top Frame Flap
   • Removing and Installing. Refer to CONVERTIBLE TOP FRAME FLAP, REMOVING AND INSTALLING .
   • Adjusting. Refer to CONVERTIBLE TOP FRAME FLAP, ADJUSTING .
   • Overview - repair set. Refer to OVERVIEW - CONVERTIBLE TOP FRAME FLAP, REPAIR KIT .
10. Release Cable
    • Removing and Installing. Refer to CONVERTIBLE TOP FRAME FLAP RELEASE CABLE, REMOVING AND INSTALLING .

Convertible Top Frame Flap - Tightening Specification and Sequence

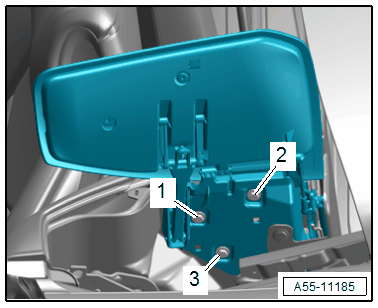

Fig 1: Convertible Top Frame Flap - Tightening Specification and Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in the steps shown in the sequence:
