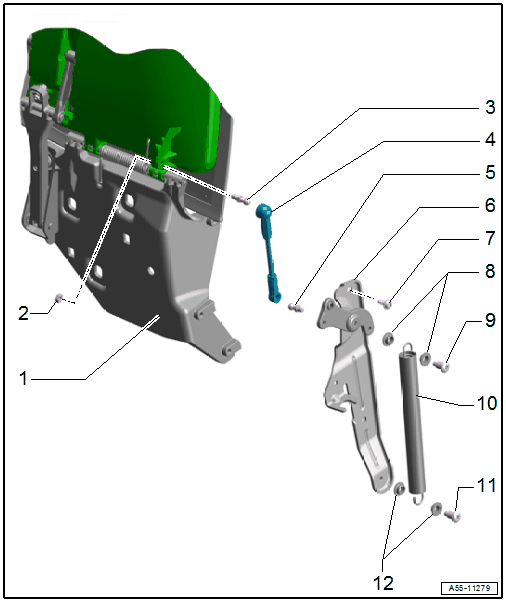

Overview - Convertible Top Frame Flap, Repair Kit

Courtesy of AUDI OF AMERICA, LLC

1. Convertible Top Frame Flap
   • Overview. Refer to OVERVIEW - CONVERTIBLE TOP FRAME FLAP .
2. Nut
   • 2 Nm
3. Upper Ball Stud
   • 2 Nm
4. Actuator Rod
5. Lower Ball Stud
   • 3 Nm
6. Support Plate
7. Bolt
   • 2 Nm
   • Quantity: 3
8. Bushing
   • Quantity: 2
9. Bolt
   • 3 Nm
10. Tension Spring
11. Bolt
    • 3 Nm
12. Bushing
    • Quantity: 2
