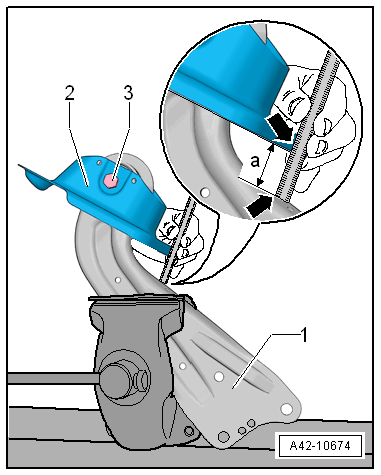

Mounting Bracket Installation Position to Trailing Arm, Adjusting
Dimension -a- is 37 mm.
1 - Trailing arm
2 - Mounting bracket
- Place a steel ruler on the mounting bracket as shown and adjust to the dimension given above. Make sure that the steel ruler is resting completely on the mounting bracket and is positioned at the inner edge of the trailing arm.
-- When dimension -a- has been adjusted, tighten the bolt -3-.
Installing
Install in reverse order of removal and note the following:
Position: Trailing Arm/Wheel Bearing Housing Threaded Connection
The trailing arm/wheel bearing housing threaded connection must only be tightened when all other components (especially the spring and strut) of the respective wheel suspension have already been assembled. To tighten, suspension must be unloaded. Only now do the trailing link and wheel bearing housing move into the position required -arrows-.
Always Perform the Following Work in the Sequence Given!

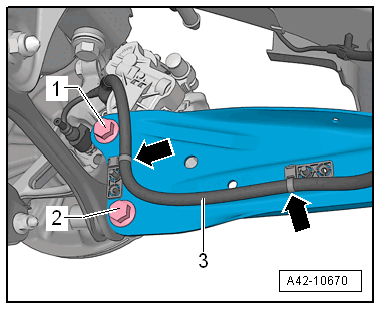

-- Install the trailing arm and mounting bracket with bolts -1 and 2- on the wheel bearing housing but do not yet tighten.
-- Raise the suspension using :VAS6931 and :T10149 until the mounting bracket contacts the body.

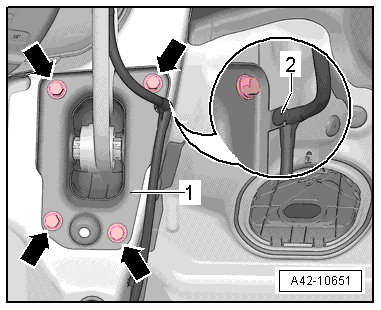

-- Tighten the bolts -arrows- onto the old impression or the marking applied previously.
-- Secure the line -2- to the bracket -1-.
-- Lower the suspension again using :VAS6931 and remove :T10149 from wheel hub.
-- Install the coil spring. Refer to SPRING, REMOVING AND INSTALLING .
-- Tighten the bolts -arrows- for trailing arm to tightening specification, while observing the required position of components. Refer to Fig 2.
-- Install the bracket by pressing in the rivet inner pins -arrows-.
-- Evaluate if an axle alignment is needed. Refer to NEED FOR AXLE ALIGNMENT, EVALUATING .
Tightening Specifications
- Refer to OVERVIEW - TRAILING ARM
- Refer to OVERVIEW - UNDERBODY TRIM PANELS .
- Refer to WHEELS AND TIRES
