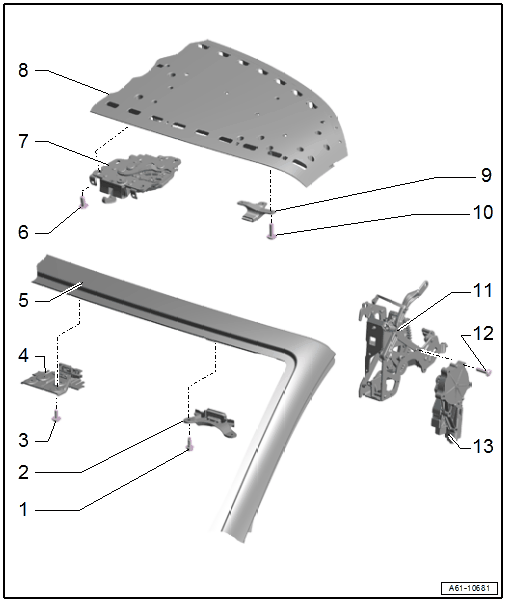

Overview - Convertible Top Latch
- Bolt
- Tightening specification and sequence. Refer to Fig 1.
- Quantity: 2
- End Plate
- Removing and installing. Refer to END PANEL, REMOVING AND INSTALLING .
- Bolt
- 10 Nm
- Quantity: 4
- Convertible Top Lock
- Removing and installing. Refer to CONVERTIBLE TOP LOCK, REMOVING AND INSTALLING .
- Adjusting. Refer to CONVERTIBLE TOP LOCK AND Convertible Top Locking Motor -V223-, ADJUSTING .
- Window Frame
- Bolt
- Quantity: 4
- Convertible Top Locking Motor -V223-
- Overview. Refer to OVERVIEW - CONVERTIBLE TOP MOTORS .
- Front Rail
- Centering Piece
- For exact positioning when the convertible top is closed
- Removing and installing. Refer to CENTERING PIECE, REMOVING AND INSTALLING .
- Bolt
- 10 Nm
- Quantity: 2
- Main Bearing
- For convertible top
- Bolt
- Quantity: 4
- Convertible Top Motor
- Overview. Refer to OVERVIEW - CONVERTIBLE TOP MOTORS .

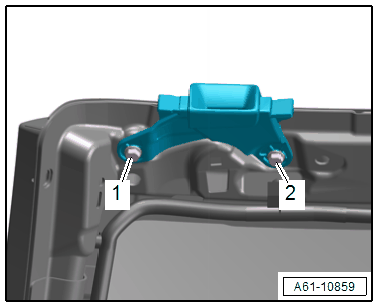

End Panel - Tightening Specification and Sequence
-- Tighten the bolts in sequence -1 and 2- to 10 Nm.
