CONVERTIBLE TOP LOCK AND Convertible Top Locking Motor -V223-, ADJUSTING

Special tools and workshop equipment required

• Gauge - Gap Adjustment:3371

Procedure

• Gap dimensions. Refer to CONVERTIBLE TOP, GAP DIMENSIONS .

Side and Length Adjustment at the Convertible Top Lock:

-- Loosen the bolts -arrows- on the convertible top lock -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Align the convertible top lock side- and lengthwise.

-- Tighten the bolts.

Side and Length Adjustment on Convertible Top Locking Motor:

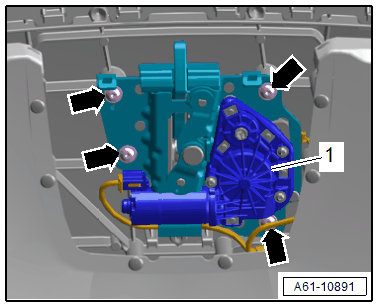

-- Loosen the bolts -arrows- on the convertible top locking motor -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Align the motor side- and lengthwise.

-- Tighten the bolts.

Tightening Specifications

• Refer to OVERVIEW - CONVERTIBLE TOP LATCH
