Sunroof Shade, Installing

Courtesy of AUDI OF AMERICA, LLC

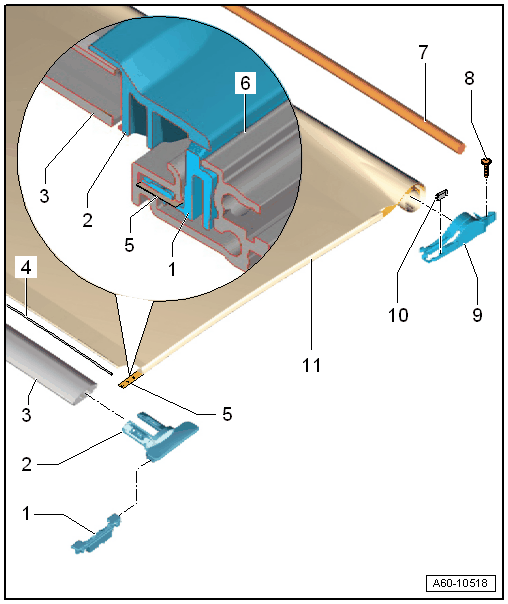

1. Slider Lower Section
   NOTE:

   The slider lower section is welded with the tensioning strap.

   • The slider lower section must be pressed in the tensioning strap and the guide at the same time as show.
2. Slider Upper Section
   • Inserted in the slider lower section. Refer to Tension Bow, Installing - Push the slider upper section -2- on both sides in the tension bow -1-. .
3. Tension Bow
4. Molding
5. Tension Strap
   • No replacement part
6. Guide
7. Shaft
   • No replacement part
8. Bolt
   • 2 Nm
9. Centering Piece
   • No replacement part
   • Inserted in the guide. Refer to SUNROOF SHADE, REMOVING AND INSTALLING - The centering piece on the sunroof shade must be pushed in on both sides in the upper guide rail -arrow-. .
10. Stop

    -- Push in the centering piece.

11. Sunroof Shade

-- Push the slider lower section in the guide rail -arrow-.

Courtesy of AUDI OF AMERICA, LLC

• The glider must be exactly in the guide on both sides.

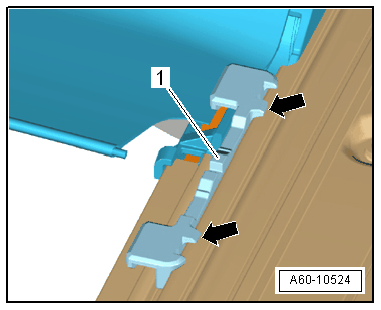

-- The guide tabs -arrows- must lie in the guides or move as shown.

Courtesy of AUDI OF AMERICA, LLC

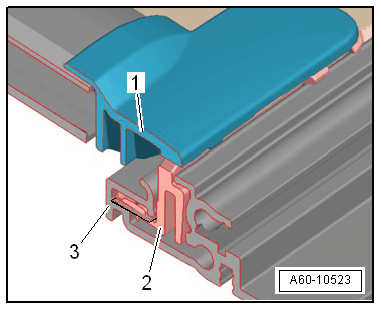

-- The slider lower section -2- must be pushed in the guide rail -3- as shown.

Courtesy of AUDI OF AMERICA, LLC

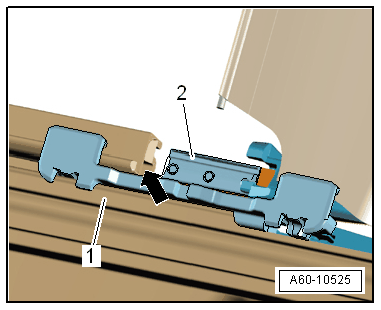

-- Push the slider upper section -1- with the rail from above on the slider lower section -2-.

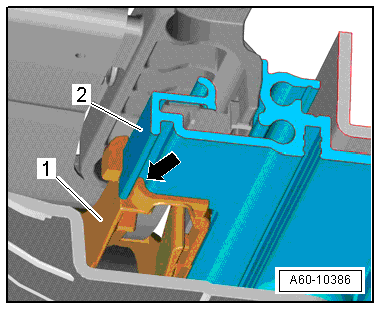

-- Push the centering piece -2- with the alignment pin -arrow- flush in the guide -1- from the sunroof frame.

Courtesy of AUDI OF AMERICA, LLC

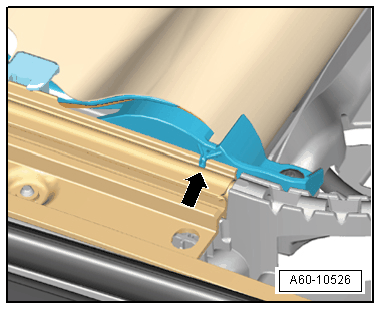

-- The centering piece on the sunroof shade must be pushed in on both sides in the upper guide rail -arrow-.

Courtesy of AUDI OF AMERICA, LLC

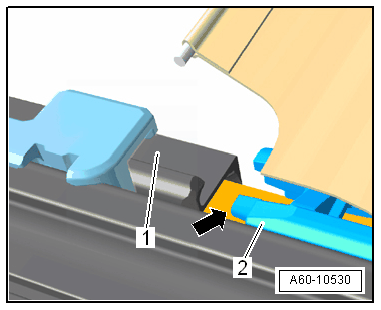

--... and the lower -2- as shown.

Courtesy of AUDI OF AMERICA, LLC

-- For this the guides are guided exactly in the centering piece -arrow- in the guide rail.

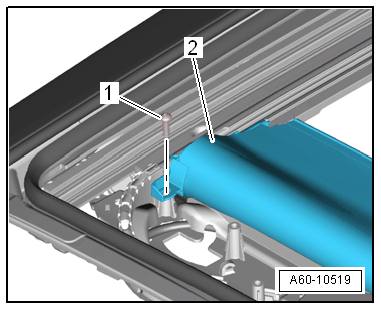

-- Tighten the bolts -1- to the tightening specification -Item  : Bolt.

Courtesy of AUDI OF AMERICA, LLC

-- Install the tension bow. Refer to Tension Bow, Installing .
