Tension Bow, Installing

Courtesy of AUDI OF AMERICA, LLC

-- Install the sunroof shade. Refer to Sunroof Shade, Installing .

-- Then push the piping that was pushed in the molding -2- from the sun shade material -1- carefully in the molding channel from the tension bow.

-- Push the slider upper section -2- on both sides in the tension bow -1-.

Courtesy of AUDI OF AMERICA, LLC

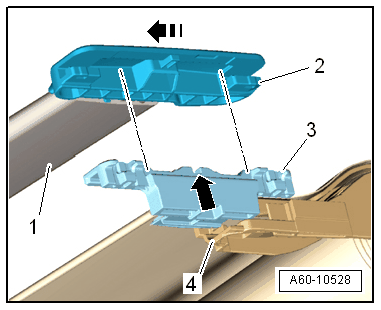

-- Push the slider upper section -3- from the back to the front in the direction of the -arrow- until it catches -arrow- in the slider lower section.

Handle, Removing and Installing

Courtesy of AUDI OF AMERICA, LLC

-- Open the glass panel.

-- Remove the bolts -2- and handle -1-.

-- Install the tension bow handle and check if the shade can be completely closed and opened.

-- Tighten bolts to the tightening specification -Item  : Bolt.
