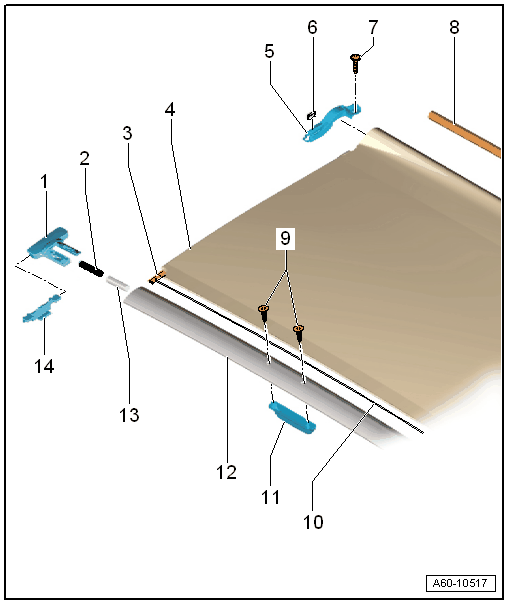

Overview - Sunroof Shade
- Slider Upper Section
- Spring
- Only installed on the right side
- Tension Strap
- No replacement part
- Sunroof Shade
- Removing and installing. Refer to SUNROOF SHADE, REMOVING AND INSTALLING
- Centering Piece
- No replacement part
- Stop
- Push from above in the centering piece
- Bolt
- 2 Nm
- Shaft
- No replacement part
- Bolt
- 1 Nm
- Molding
- No replacement part
-- First push sideways in the loop on the sun shade material, then push together in the tension bow. Refer to Tension Bow, Installing .
- No replacement part
- Handle
- Tension Bow
- Can be removed without removing the sunroof shade
- Removing and installing. Refer to Tension Bow, Installing
- Sleeve
- Only installed on the right side
- Slider Lower Section
- Welded with the tensioning strap
