Height, Adjusting Using Adjusting Buffer

Special tools and workshop equipment required

• Gauge - Gap Adjustment: 3371

• Adjustment dimensions. Refer to ADJUSTMENT DIMENSIONS .

Courtesy of AUDI OF AMERICA, LLC

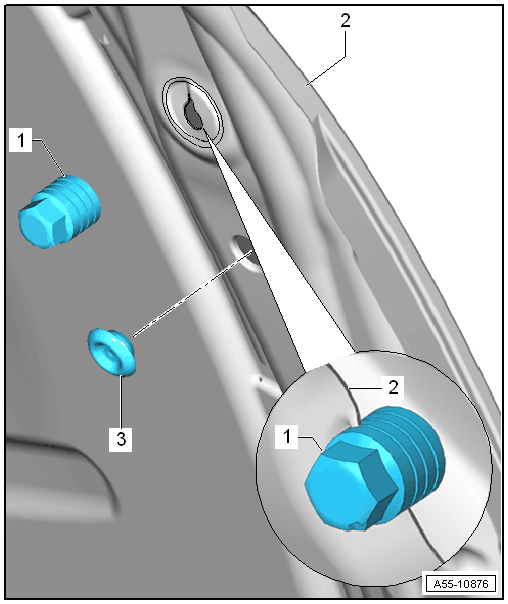

1. Adjusting Buffer
   • Screw in the inner part of the hood.

     -- Adjust the hood with the adjustment buffer to the fenders evenly.

     -- The adjusting buffer must lightly touch the bumper when the hood is closed.

2. Hood
3. Cap

   -- Clip in the hood
