Hood
>>
Hood, Adjusting
>>
Adjustment Dimensions
Adjustment Dimensions

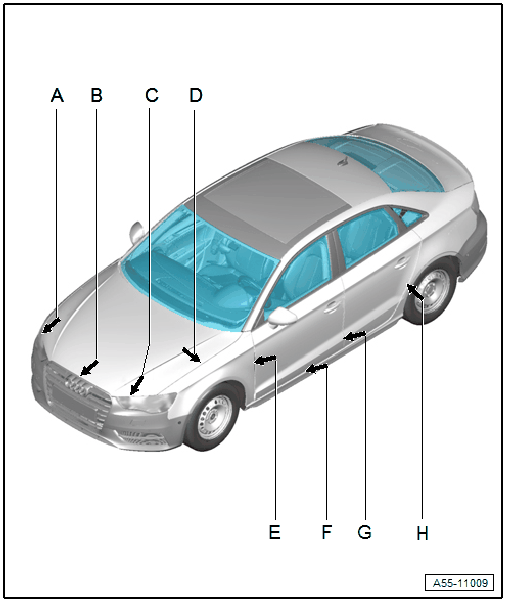

Fig 1: Adjustment Dimensions, Sportback and Sedan
Courtesy of AUDI OF AMERICA, LLC
Dimension -A- = 5 mm ± 0.5 mm
Dimension -B- = 4.5 mm ± 0.5 mm
Dimension -C- = 5 mm ± 0.5 mm
Dimension -D- = 3 mm ± 0.5 mm
