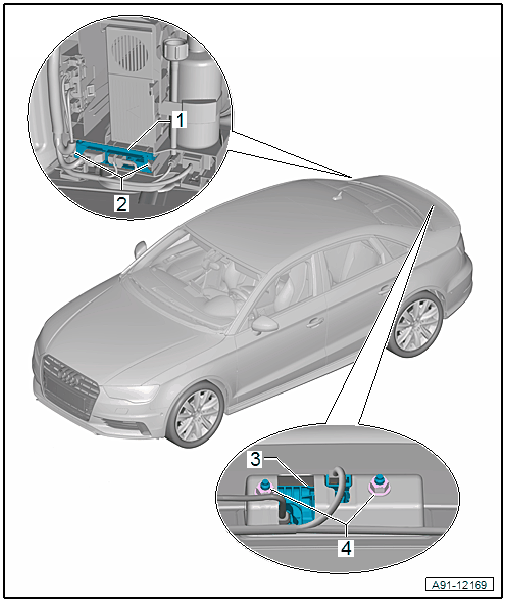

Component Location Overview - Rearview Camera System, Sedan, Through My 2016

Courtesy of AUDI OF AMERICA, LLC

1. Rearview Camera System Control Module -J772-
   • Connector Assignment. Refer to REARVIEW CAMERA SYSTEM CONTROL MODULE -J772- CONNECTORS, THROUGH MY 2016 .
   • Removing and installing. Refer to REARVIEW CAMERA SYSTEM CONTROL MODULE -J772-, REMOVING AND INSTALLING, SEDAN, THROUGH MY 2016 .
   • Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
2. Retainers
3. Rearview Camera -R189- in handle button
   • Removing and installing. Refer to REARVIEW CAMERA -R189-, REMOVING AND INSTALLING, SEDAN .
   • Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
4. Nut
   • 4 Nm
   • Quantity: 2
