Rearview Camera System Control Module -J772- Connectors, Through My 2016

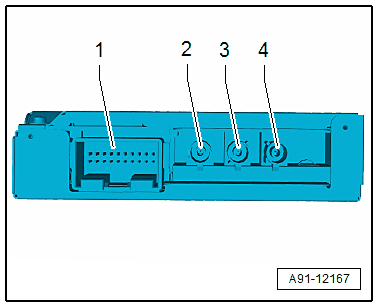

Fig 1: Rearview Camera System Control Module -J772-

Courtesy of AUDI OF AMERICA, LLC

1. 20-Pin Connector -T20i-
2. CVBS output to the Information Electronics Control Module 1 -J794-
3. CVBS input from the Rearview Camera -R189-
4. Not Assigned

Fig 2: 20-Pin Connector -T20b-

Courtesy of AUDI OF AMERICA, LLC

9  - Rearview Camera -R189- power supply

10  - Terminal 30

11  - CAN bus low, Infotainment

12  - CAN bus high, Infotainment

19  - Terminal 31 to the Rearview Camera -R189-

20  - Terminal 31
