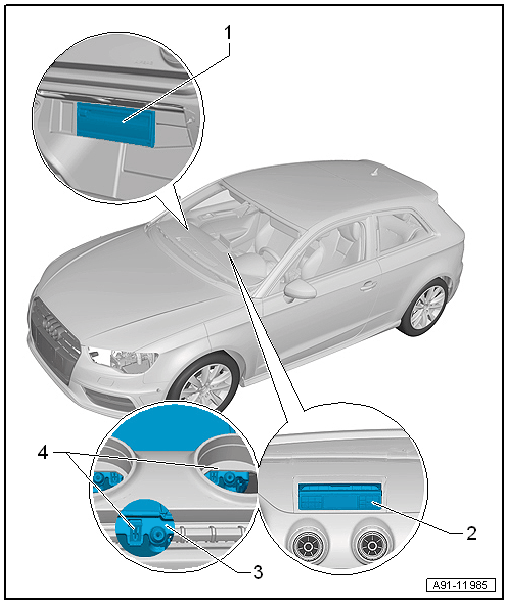

Component Location Overview - Radio, Radio Can (I8A)

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
   • Connector Assignment. Refer to RADIO CAN (I8A), THROUGH MY 2016 .
   • Removing and Installing. Refer to RADIO, REMOVING AND INSTALLING .
2. Multimedia System Control Head -E380-
   • Connector Assignment. Refer to Multimedia System Control Head -E380- IN INSTRUMENT PANEL .
   • Removing and Installing. Refer to Multimedia System Control Head -E380- IN INSTRUMENT PANEL, REMOVING AND INSTALLING .
3. Multimedia System Control Head -E380- mount
4. Spring tabs
