Multimedia System Control Head -E380- IN INSTRUMENT PANEL

Multimedia System Control Head -E380-

NOTE:

Unlisted connector terminals are not assigned.

1 - 8-Pin Connector T8k

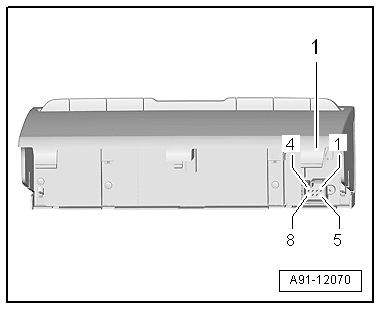

Fig 1: 1 - 8-Pin Connector -T8k-

Courtesy of AUDI OF AMERICA, LLC

BT (+) to the Information Electronics Control Module 1 -J794-
BT (-) to the Information Electronics Control Module 1 -J794-
CAN bus low to the Information Electronics Control Module 1 -J794-
CAN bus high to the Information Electronics Control Module 1 -J794-
Reset, Multimedia System Control Head Multimedia System Control Head -E380- from Information Electronics Control Module 1 -J794-
Not Assigned
Reset Information Electronics Control Module 1 -J794-
Wake up KP to the Information Electronics Control Module 1 -J794-
