Component Location Overview - Radio, AUDI Radio Can (I7X)

Courtesy of AUDI OF AMERICA, LLC

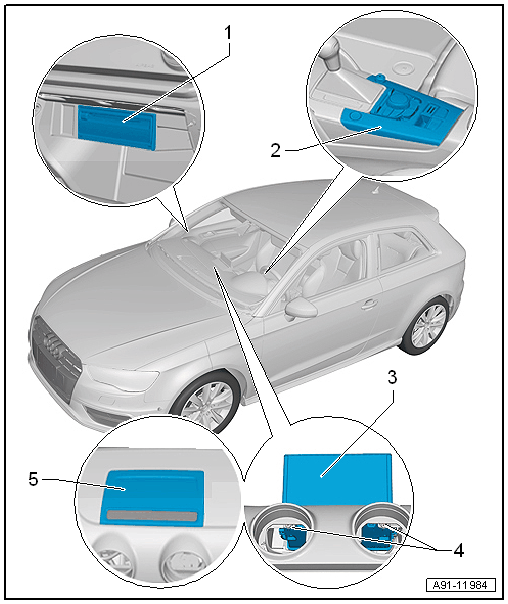

1. Information Electronics Control Module 1 -J794-
   • Connector Assignment. Refer to AUDI RADIO CAN (I7X), THROUGH MY 2016 .
   • Removing and Installing. Refer to RADIO, REMOVING AND INSTALLING .
2. Multimedia System Control Head -E380-
   • Connector Assignment. Refer to Multimedia System Control Head -E380- IN THE CENTER CONSOLE .
   • Removing and Installing. Refer to Multimedia System Control Head -E380- IN CENTER CONSOLE, REMOVING AND INSTALLING .
3. Front Information Display Control Head -J685-
   • Connector Assignment. Refer to Front Information Display Control Head -J685- .
   • Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
4. Bolt
   • Quantity: 2
   • captive
   • 3 Nm
5. Cover
   • Replace after removing
