Front Information Display Control Head -J685-

Front Information Display Control Head J685

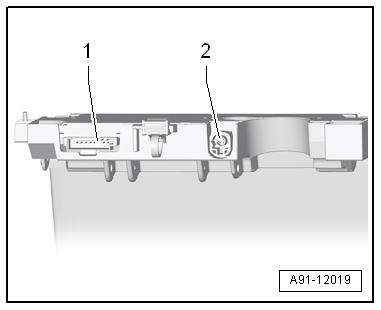

Fig 1: Front Information Display Control Head -J685-

Courtesy of AUDI OF AMERICA, LLC

1. 8-Pin Connector -T8ai-
2. 4-Pin Connector -T4ao- to the Information Electronics Control Module 1 -J794-

1 - 8-Pin Connector T8ai

Fig 2: 1 - 8-Pin Connector -T8ao-

Courtesy of AUDI OF AMERICA, LLC

4 -  Terminal 30

5 -  Terminal 31

7 -  CAN bus high to the Information Electronics Control Module 1 -J794-

8 -  CAN bus low to the Information Electronics Control Module 1 -J794-

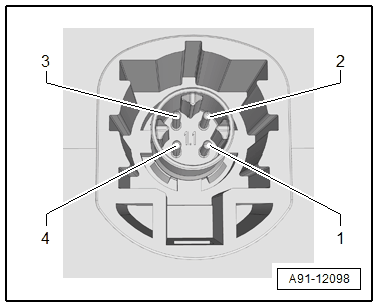

2 - 4-Pin Connector T4ao

Fig 3: 1 - 5-Pin Connector -T5-

Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the Information Electronics Control Module 1 -J794-.

1. Ground
2. LVDS (+)
3. Not Assigned
4. LVDS (-)
