Antenna Amplifier -R24-, REMOVING AND INSTALLING, 3-DOOR, 5-DOOR VEHICLES: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the upper rear lid trim panel. Refer to OVERVIEW - REAR LID UPPER TRIM PANEL .

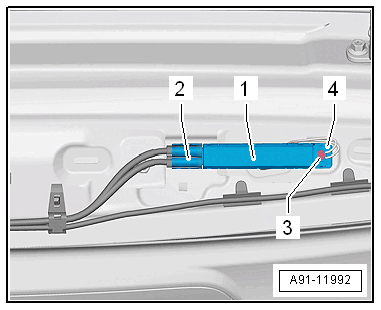

-- Release and disconnect the connectors -2- and -4- on the Antenna Amplifier -R24- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Only loosen the screw -3- (do not remove) and remove the Antenna Amplifier -R24- -1- from the rear lid.
