Overview - Rear Lid Upper Trim Panel

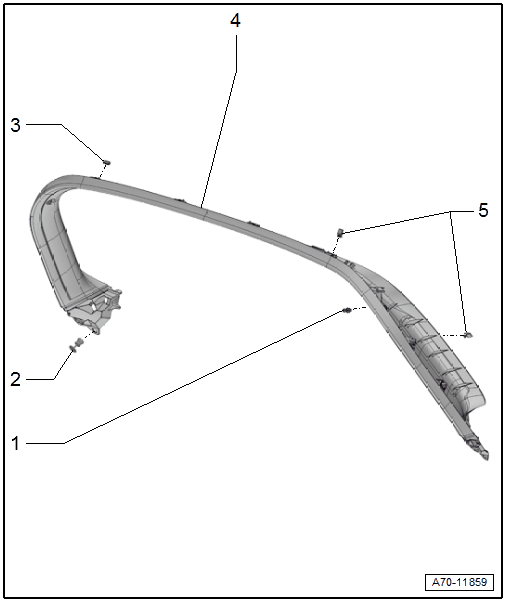

Fig 1: Exploded View Of Rear Lid Upper Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Pin for Rear Shelf Securing Strap
- Quantity: 2
- Clipped in the rear lid trim panel
Expanding Clip
- Quantity: 2
Rubber Buffer
- Quantity: 5
- Insert in the trim panel
Rear Lid Upper Trim Panel
- Removing and Installing. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
Clip
- Quantity: 8
- Insert in the trim panel
- Remove any clips still in the rear lid mounting points using the Omega Clip Tool: T40280 and insert into the trim panel to install
- Replace damaged or deformed clips
