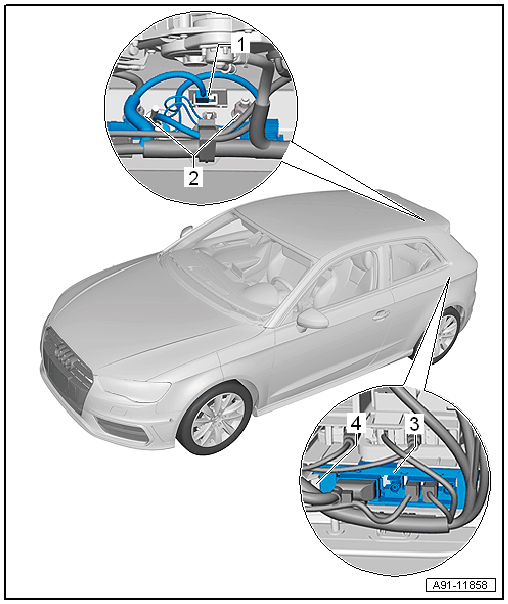

Component Location Overview - Rearview Camera System, 3-Door And 5-Door Vehicles, Through My 2016

Courtesy of AUDI OF AMERICA, LLC

1. Rearview Camera -R189- in Handle Button
   • Removing and installing. Refer to REARVIEW CAMERA -R189-, REMOVING AND INSTALLING, 3- AND 5-DOOR VEHICLES .
   • Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
2. Nut
   • 6 Nm
   • Quantity: 2
3. Rearview Camera System Control Module -J772-
   • Connector Assignment. Refer to REARVIEW CAMERA SYSTEM CONTROL MODULE -J772- CONNECTORS, THROUGH MY 2016 .
   • Removing and installing. Refer to REARVIEW CAMERA SYSTEM CONTROL MODULE -J772-, REMOVING AND INSTALLING, 3-DOOR AND 5-DOOR VEHICLES, THROUGH MY 2016 .
   • Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
4. Retainer
