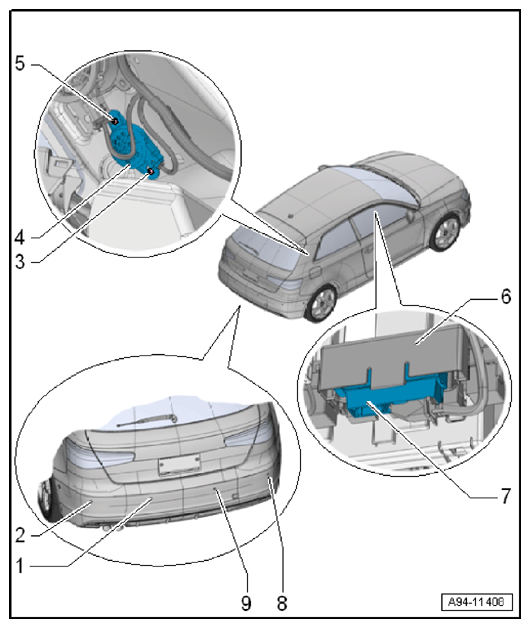

Overview - Rear Parking Aid

Courtesy of AUDI OF AMERICA, LLC

Left Rear Center Parking Aid Sensor - G204-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING . .
Left Rear Parking Aid Sensor - G203-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING . .
Expanding Clip
Rear Parking Aid Warning Buzzer - H15-
- Discontinued from MY 2019 the Front Parking Aid Warning Buzzer - H22- is then only installed on parking aid versions 7X2 and 7X5.
- Removing and installing. Refer to REAR PARKING AID WARNING BUZZER - H15-, REMOVING AND INSTALLING . .
Expanding Clip
Bracket
- For the control module
Parking Aid Control Module - J446-
- Removing and installing. Refer to PARKING AID CONTROL MODULE - J446-, REMOVING AND INSTALLING . .
Right Rear Parking Aid Sensor - G206-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING . .
Right Rear Center Parking Aid Sensor - G205-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING . .
