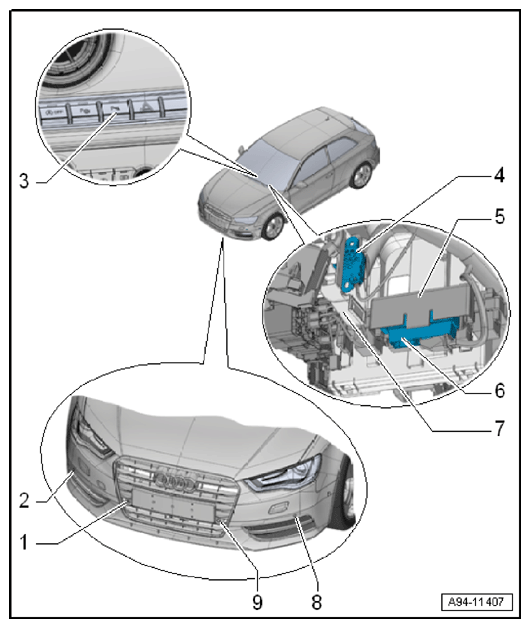

Overview - Front Parking Aid

Courtesy of AUDI OF AMERICA, LLC

Right Front Center Parking Aid Sensor - G253-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING . .
Right Front Parking Aid Sensor - G252-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING . .
Parking Aid Button - E266-
- Only for parking aid versions 7X2 and 7X5
- Removing and Installing. Refer to 2.10 Switch Module in Instrument Panel, Center EX22, Removing and Installing. .
Front Parking Aid Warning Buzzer - H22-
- Only for parking aid versions 7X2 and 7X5
- Removing and Installing. Refer to FRONT PARKING AID WARNING BUZZER - H22-, REMOVING AND INSTALLING .
Bracket
- For the control module
Parking Aid Control Module - J446-
- Removing and installing. Refer to PARKING AID CONTROL MODULE - J446-, REMOVING AND INSTALLING . .
Bracket
- For vehicle electrical system control module
Left Front Parking Aid Sensor - G255-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING . .
Left Front Center Parking Aid Sensor - G254-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING . .
