Overview - SUBFRAME Mount, Vehicles With Manual Transmission 02Q And Dual-Clutch Transmission 0CW/0D9
WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

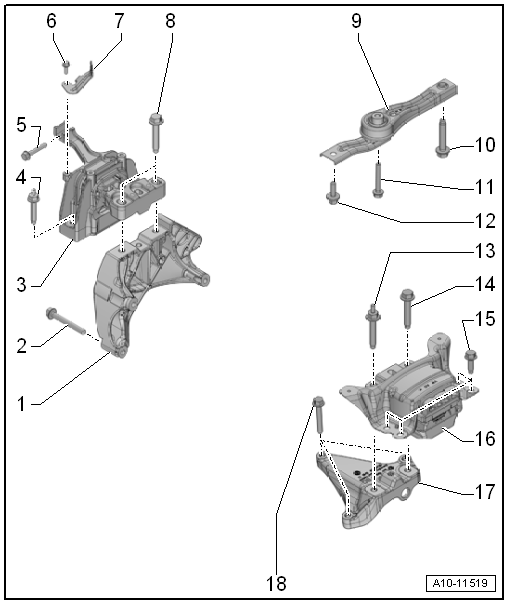

Fig 1: Exploded View Of Subframe Mount, Vehicles With Manual Transmission 02Q And Dual-Clutch Transmission 0Cw/0D9
- Engine Support
- Removing and installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
- Bolt
- Tightening specification and sequence. Refer to INSTALLING THE PENDULUM SUPPORT .
- Always replace
- Engine Mount
- With support arm
- Removing and installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
- Bolt
- 40 Nm +90°
- Always replace
- Bolt
- 20 Nm +90°
- Always replace
- Bolt
- 8 Nm
- Bracket
- Bolt
- 60 Nm +90°
- Always replace
- Pendulum Support
- There are different versions. Refer to the Parts information for the allocation.
- Removing and installing. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
- Bolt
- Tightening specification and sequence. Refer to INSTALLING THE PENDULUM SUPPORT .
- Always replace
- Bolt
- Tightening specification and sequence. Refer toINSTALLING THE PENDULUM SUPPORT .
- Always replace
- Bolt
- Tightening specification and sequence. Refer to INSTALLING THE PENDULUM SUPPORT .
- Always replace
- Bolt
- 60 Nm +90°
- Always replace
- Bolt
- 60 Nm +90°
- Always replace
- Bolt
- 50 Nm + 90°
- Always replace
- Transmission Mount
- With support arm
- Removing and installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
- Transmission Support
- There are different versions. Refer to the Parts information for the allocation.
- Bolt
- Tightening specification. Refer to SUBFRAME MOUNT [For transmission(s) 0GC]SUBFRAME MOUNT [For transmission(s) 0D9] .
