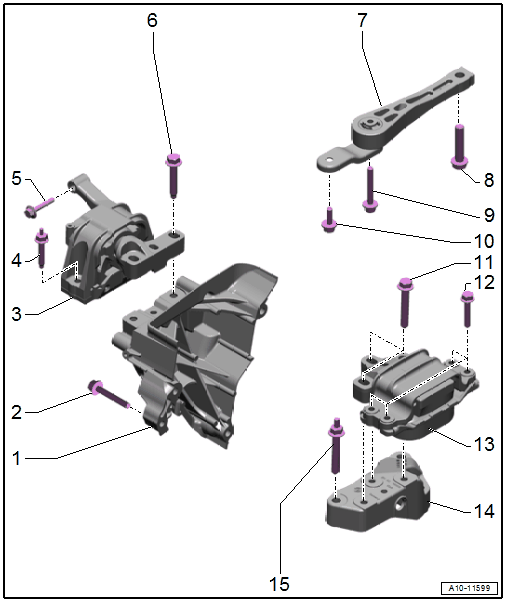

Overview - Assembly Mounts

Courtesy of AUDI OF AMERICA, LLC

1 -Bolt
- For the tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
2 -Engine Support
- For removing and installing, refer to to OVERVIEW - SUBFRAME MOUNT .
3 -Engine Mount
- With support arm
- Removing and Installing, refer to ENGINE MOUNT, REMOVING AND INSTALLING .
4, 5, 6 -Bolts
- For the tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
7 -Pendulum Support
- Removing and Installing, refer to PENDULUM SUPPORT, REMOVING AND INSTALLING . .
8, 9, 10 -Bolts
- For the tightening specification, refer to OVERVIEW - SUBFRAME MOUNT .
11 -Bolt
- 60 Nm + 90° turn
- Replace after removing
12 -Bolt
- 60 Nm + 90° turn
- Replace after removing
13 -Transmission Mount
- With support arm
- Removing and Installing, refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
14 -Transmission Support
- Removing, refer to TRANSMISSION, REMOVING .
- Installing TRANSMISSION, INSTALLING .
15 -Bolt
- 60 Nm + 90° turn
- Replace after removing
