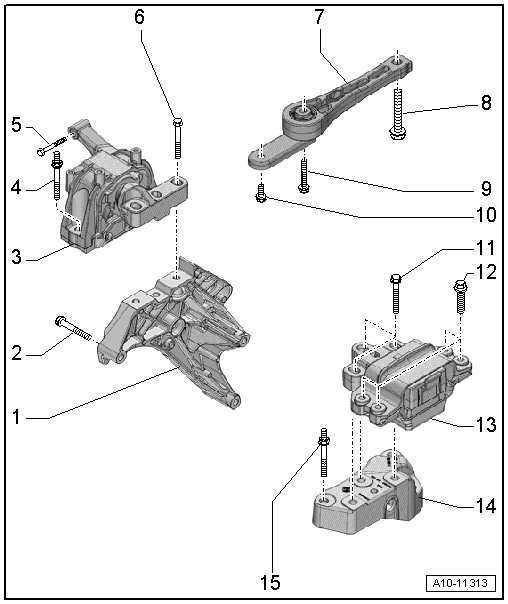

Overview - SUBFRAME Mount
WARNING: This page is about a different car, the 2016 Audi Q3 Quattro, 2016 Audi Q3, 2015 Audi Q3 Quattro, and 2015 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.
- Engine Support
- Bolt
- Always replace
- Tightening sequence. Refer to Fig 2.
- Engine Mount
- With support arm
- Removing and installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
- Bolt
- 40 Nm + 90°
- Always replace
- Bolt
- 20 Nm + 90°
- Always replace
- Bolt
- 60 Nm + 90°
- Always replace
- Pendulum Support
- Removing and installing. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
- Bolt
- Always replace
- Tightening specification and sequence. Refer to Fig 3.
- Bolt
- Always replace
- Tightening specification and sequence. Refer to Fig 3.
- Bolts
- Always replace
- Tightening specification and sequence. Refer to Fig 3.
- Bolt
- Tightening specification. Refer to ASSEMBLY MOUNTS and TRANSMISSION, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to ASSEMBLY MOUNTS and TRANSMISSION, REMOVING AND INSTALLING .
- Transmission Mount
- With support arm
- Transmission Support
- There are different versions. For the correct allocation. Refer to parts information.
- Bolt
- Tightening specification. Refer to ASSEMBLY MOUNTS and TRANSMISSION, REMOVING AND INSTALLING .
NOTE:
Replace any bolts that were tightened with an additional turn.
-- Tighten the bolts -1 through 3- in three steps in the sequence shown:
-- 1. Tighten the bolts to 7 Nm.
-- 2. Tighten the bolts to 40 Nm.
-- 3. Turn the bolts an additional 180°.
NOTE:
Replace any bolts that were tightened with an additional turn.
-- Tighten the bolts in three steps and in the sequence shown:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -2 and 3- | 50 Nm |
| 2. | -1- | 100 Nm |
| 3. | -1 to 3- | Tighten an additional 90° |
