Final Drive Identification
Rear Final Drive Identification, for Example "Rear Final Drive- 0AV".
-Arrow A- Final Drive Part Number
-Arrow B- Final Drive Code Letters
- If there are no code letters present, then use the part number for the allocation. Refer to the parts information.
-Arrow C- Final Drive Build Date
Example:
| HHJ | 09 | 08 | 05 |
|---|---|---|---|
| I | I | I | I |
| I | I | I | I |
| Code letters | Day | Month | Production year -2005- |
Additional data depend on the manufacturing.
The >>all wheel drive clutch<< is installed in the rear final drive.
The final drive and >>all wheel drive clutch<< have separate oil circuits.
The >>all wheel drive clutch generation IV<< is installed in the final drive "0BS". Refer to FINAL DRIVE IDENTIFICATION => Example of the Identification for the identification.
The >>all wheel drive clutch generation V<< is installed in the final drive "0AY" and "0CR". Refer to FINAL DRIVE IDENTIFICATION => Example of the Identification for the identification.
In the final drive "0BR" is installed in Audi A1 quattro the >>Generation IV all wheel drive clutch<< is installed. The Audi S1 is installed in the >>Generation V all wheel drive clutch<<. Differences. Refer to ALL WHEEL DRIVE CLUTCH IDENTIFICATION .

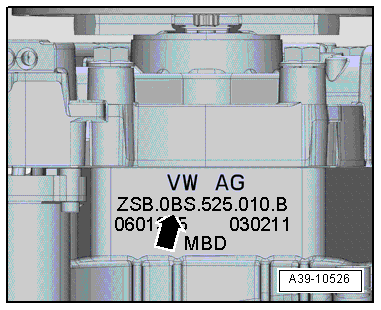

Example of the Identification "0BS"
The identification -arrow- on the bottom side of the final drive identifies which final drive is installed.
The Rear Final Drive 0BS Was Installed through 11/04/2013 in the Audi Q3 and Is Allocated to the following Transmissions:
- 6-speed manual transmission 02Q, AWD
- 6-speed manual transmission 0A6 AWD
- 7-speed dual-clutch transmission 0BH, S tronic
The Rear Final Drive 0AY is Installed from 11/04/2013 in the Audi Q3 and is Allocated to the Following Transmissions:
- 6-speed manual transmission 02Q, AWD
- 6-speed manual transmission 0A6 AWD
- 7-speed dual-clutch transmission 0BH, S tronic
- Automatic 6-speed transmission 09M
The Rear Final Drive 0CR is Installed from 01/19/2015 in the Audi RS Q3 and is Allocated to the Following Transmissions:
- 7-speed dual-clutch transmission 0BH, S tronic
The Rear Final Drive 0BR is Installed in the Audi A1 and is Allocated to the Following Transmissions:
- 6-speed manual transmission 0A8, AWD
