All Wheel Drive Clutch Identification

Depending on the final drive, different all wheel drive clutch generations may be installed. The characteristics are listed below.

• -1- Control module with pressure regulating valve, installed on the side
• -2- High pressure pump with filter
• -3- Pressure reservoir

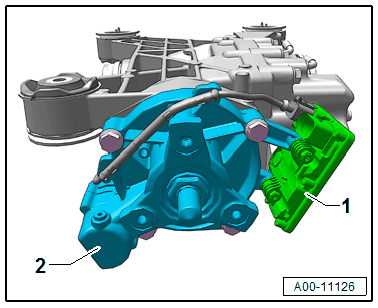

• -1- Control module, installed from the front
• -2- High pressure pump
