Fuel Injector Seals, Removing And Installing: Procedure

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Seal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fuel injector in question, refer to FUEL INJECTORS, REMOVING AND INSTALLING .

-- Install the Puller - Shaft Seal T40195 into the seal -1-.

-- Attach the Slide Hammer T10133/3 to the seal puller with the Adapter T10133/2 as shown in the illustration and remove it by tapping it upward.

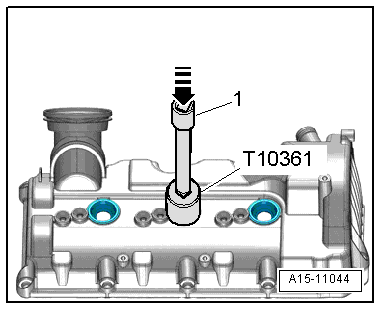

-- Install the new fuel injector seal all the way with the Socket - 24 mm T10361 and the short extension -1-.
