Input Shaft Ball Bearing, Replacing: Installing

WARNING: This page is about a different car, the 2015 Audi S7, 2014 Audi S7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.

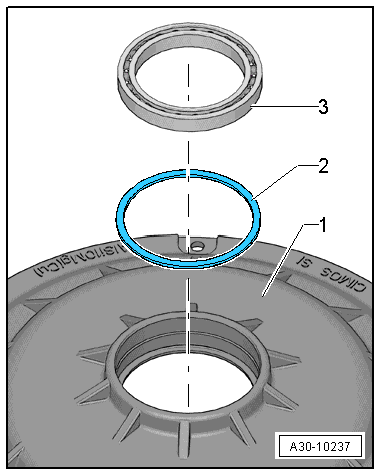

Fig 1: Identifying Clutch Cover Components

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Replace the O-ring and locking rings, refer to OVERVIEW - FLYWHEEL AND DUAL CLUTCH .

NOTE:

The clutch cover may have or may not have a thrust washer -2-, depending on the date of manufacture. Allocation.

-- If it was there during the removal, then insert a thrust washer -2- into the cover -1-.

-- Install the new dual clutch ball bearing all the way.

Fig 2: Identifying Dual Clutch Ball Bearing, Installation

Courtesy of AUDI OF AMERICA, LLC

Position the Press Piece - 60mmVW415A with the thin shoulder facing up.

-- Install the new ball bearing circlip -arrow-.

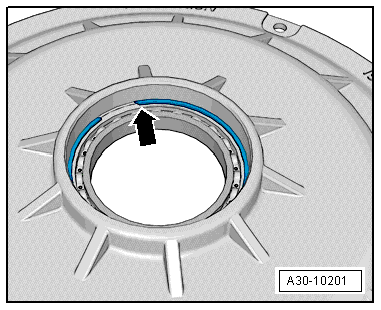

Fig 3: Identifying Locking Ring

Courtesy of AUDI OF AMERICA, LLC

-- Clean the sealing surface on the clutch cover.
