Upper Transverse Link, Removing And Installing: Installing
Replace the bolts and the self-locking nuts.
Installation position of the transverse link to the subframe

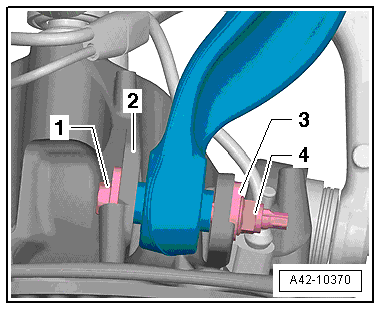

-- Install the upper control arm -3- on the threaded connection -1- by hand.

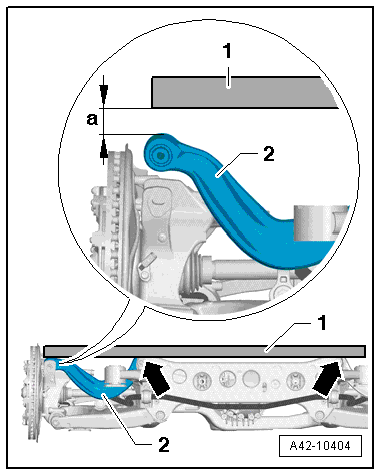

-- Place a piece of flat iron -1- flat on the highest point of the subframe -arrow-.
-- Position the upper control arm -2- so dimension a = 11 mm between the flat iron -1- and the stamping burr on the upper control arm -2-.
-- Tighten the upper control arm -3- on the subframe in this position.
-- Screw wheel bearing housing on control arm and tighten new nut to 20 Nm. Note the installation position of the centering washer -2-.
-- Install the subframe. For FWD vehicles, refer to Removing ; for AWD vehicles, refer to.
-- Loosen the nut -4-.
-- Lift the wheel bearing into the curb weight position (refer to WHEEL BEARING IN CURB WEIGHT, LIFTING VEHICLES WITH COIL SPRING ) or control position (refer to WHEEL BEARING IN CONTROL POSITION, LIFTING VEHICLES WITH AIR SUSPENSION ) and tighten the nut -4-.
-- Install rear wheel, refer to WHEELS AND TIRES .
-- Axle alignment, refer to the table in EVALUATING NEED FOR AXLE ALIGNMENT .
The axle alignment must be performed on a VW/Audi approved alignment stand.
