Overview - Rear Side Window

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

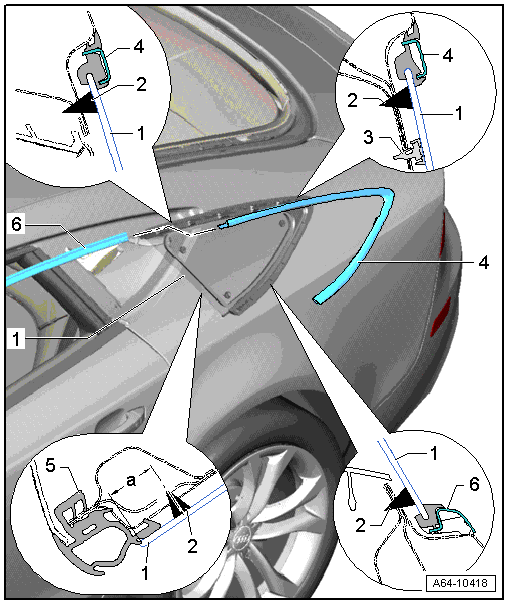

Fig 1: Overview Of Rear Side Window
GWWA64-10418Courtesy of AUDI OF AMERICA, LLC
  1. Side Window
    • The roof trim molding is removed. Refer to ROOF TRIM MOLDING, REMOVING AND INSTALLING .
    • Remove the door seal on the >>C-Pillar<< in the side window area.
    • Remove the window. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
    • When installing a new window, first press it into the >>D-pillar<< with the securing pin and then insert the whole thing into the window opening and let the securing pin lock into the >>C-pillar<<.
    • If a window was removed and is being installed again, then secure the window to the inside the window opening with tape.
  2. Adhesive Bead
    • Dimension -a- = 26 mm
  3. Securing Pin
    • No replacement part
    • Is cut through when removing window.
  4. Side Window Trim Molding
  5. Door Seal
    • Remove near the side window
  6. Roof Trim Molding
