Side Window Trim Molding, Removing And Installing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

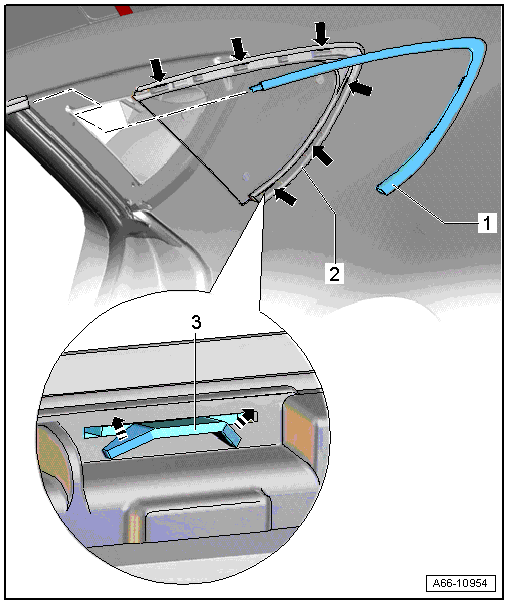

- Side Window Trim Molding
- Removing
-- Remove the side window.
-- Bend all the tabs on the inside of the molding straight in direction of the arrow (quantity: 6).
-- Remove the trim molding from the side window.
- Installing
-- Install the trim strip into the side window molding.
-- Bend the tabs on the inside of the molding opposite the direction of the arrow.
-- Install the side window.
- Removing
- Side Window
- Removing. Refer to OVERVIEW - REAR SIDE WINDOW .
- Retaining Tab
