Brake Rotor, Removing And Installing : Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
Do not loosen the bolted connections -A and B arrows-.
WARNING:
There is a risk of malfunction.
- Do not loosen the bolted connections -A arrows-
- Do not loosen the guide pins -arrows B-.
NOTE:
When installing brake rotors, pay attention to the arrow showing the direction of travel on the brake rotor and to the left and right installed location.
-- Raise the vehicle.
-- Remove the wheels.
-- Disconnect the connector for the brake pad wear display -arrow-.
-- Release the connector from the mount while turning it 90° at the same time.
-- Remove the connector from the bracket.
-- Disengage the brake line -arrow- from it mounting.
-- Remove the brake caliper. Refer to Removing .
NOTE:

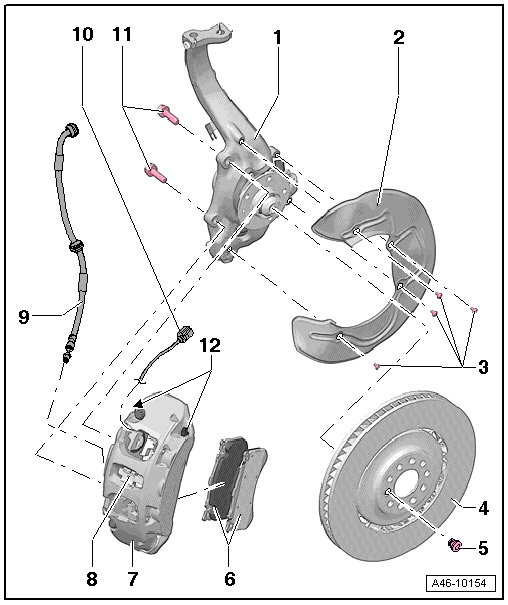

Loosen the bolts -11- with the Socket - Xzn 9 T50036.
-- Hang the brake caliper on the body using a suitable wire.
CAUTION:
Do not let the brake caliper hang on the brake hose.
-- Remove the brake rotor bolt -5-.
-- Remove the brake rotor.
-- Clean the brake rotor and the wheel hub before installing the brake rotor.
