Bracket, Removing And Installing: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench 1331 5-50 Nm VAG 1331
Torque Wrench 1783 - Reversible Ratchet VAS 5122
Release Tool for Brake Light Switch T40168A
Brake Servo Release Tool T40136

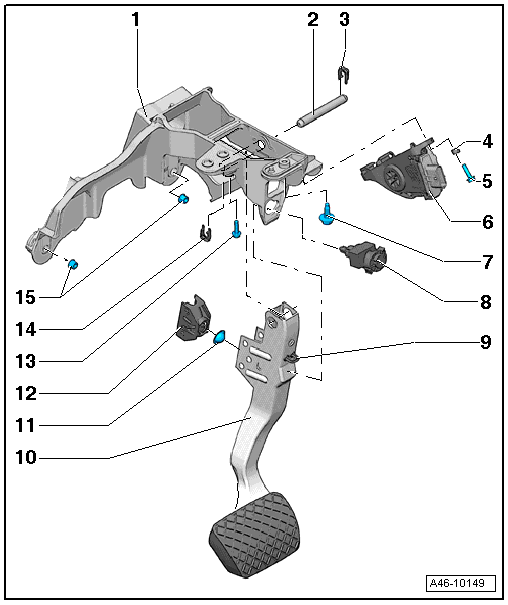

Fig 1: Identifying Mounting Bracket

Courtesy of AUDI OF AMERICA, LLC

Mounting Bracket for Pedal Assembly
Pivot Pin for Brake Pedal
Right Securing Clip (Spring Steel)
Washer
- Not installed on this model
Gas Pedal Module Bolt
- 8 Nm
Accelerator Pedal Module
Bolt for Attaching Pedal Bracket to Steering Column
- 20 Nm
Brake Lamp Switch -F-
- Refer to Brake Lamp Switch -F-, REMOVING AND INSTALLING
Stop
WARNING: If possible, leave the brake pedal stop installed; it could break the mount for the Brake Lamp Switch -F- if the brake pedal is released too quickly.
Brake Pedal
Refer to BRAKE PEDAL AND BRAKE BOOSTER, DISCONNECTING AND CONNECTING
- Refer to BRAKE PEDAL, REMOVING AND INSTALLING, VEHICLES WITH AUTOMATIC TRANSMISSION
- Refer to BRAKE PEDAL, REMOVING AND INSTALLING, WITH MANUAL TRANSMISSION
  WARNING: If possible, leave the brake pedal stop installed; it could break the mount for the Brake Lamp Switch -F- if the brake pedal is released too quickly.
Ball Socket Formed in Mount
- For the ball head on the brake booster push rod
Mount for Brake Booster Push Rod
- For the ball head on the brake booster push rod
- with ball stud retaining tabs
- Refer to MOUNT, REMOVING AND INSTALLING, BRAKE BOOSTER PUSH ROD
Mounting Pin Bolt
- 8 Nm
- The bolt holds the mounting pins in position
Left Securing Clip (Spring Steel)
Nut
- 8 Nm

NOTE: The washer -4- is not installed in this model.
