Overview - Window Guides And Window Shaft Strips

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

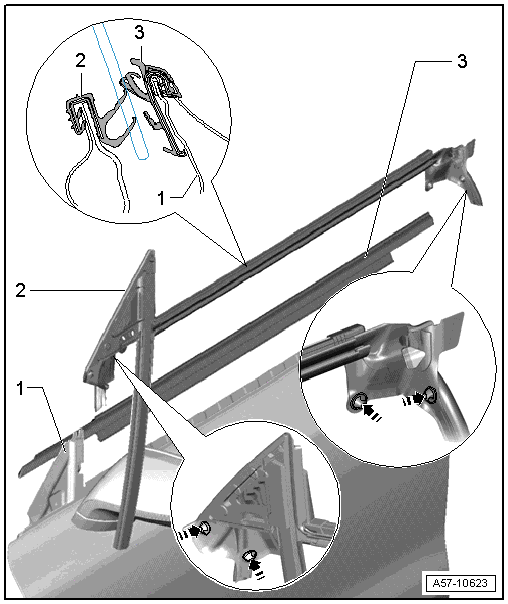

Fig 1: Identifying Window Guides And Window Shaft Strips

Courtesy of AUDI OF AMERICA, LLC

Door
Inner Window Shaft Strip
NOTE:
Vehicles with tinted glass have a different version.
- Removing:
  The door trim panel is removed. .

  -- Remove the triangular trim. Refer to A-PILLAR TRIM, REMOVING AND INSTALLING

  -- Front door window removed. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .

  -- Unclip the window shaft strip first near the door >>B-pillar<< (quantity: 2) and near the >>A-pillar<< (quantity: 1).

  -- Remove the window shaft strip with the guide rail for the window guide from the door upward.
Outer Window Shaft Strip
- Removing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
