A-Pillar Trim, Removing And Installing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the door trim panel. Refer to OVERVIEW - A-PILLAR TRIM PANEL

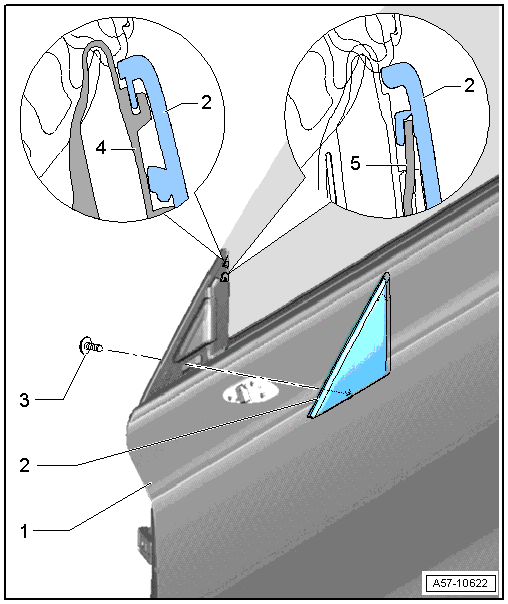

-- Remove the inner window shaft strip -3- over the bolt -3-.
-- Remove the bolt and the triangular trim -2-.
-- The triangular trim must hook into the inner window shaft strip and into the door as illustrated.
-- Tighten bolt to 2 Nm.
