Outer Window Shaft Strip, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the door trim panel.

-- Remove the inner window shaft strip. Refer to -item 2- 2.

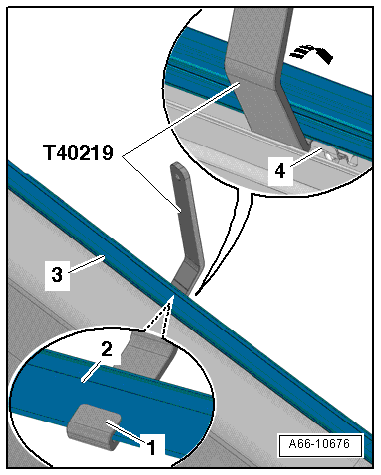

Fig 1: Identifying Window Slot Seal Tool T40219, Guide -4-, Window Shaft Strip -3- And Strip -2-

Courtesy of AUDI OF AMERICA, LLC

-- Lower the door window.

-- Remove the triangular trim. Refer to A-PILLAR TRIM, REMOVING AND INSTALLING .

-- Insert the Window Slot Seal Tool T40219 next to the guide -4- for the window shaft strip -3- and hold it on the strip -2-.

The front section -1- of the Window Slot Seal Tool T40219 must be installed as shown.

-- Push the Window Slot Seal Tool T40219 gently in direction of -arrow- to release it.

The retaining strip must audibly unlock.

-- Remove the window shaft strip upward from the door flange using the Window Slot Seal Tool T40219.

-- Remove the window shaft strip.
