Piston Cooling Nozzle Control Valve -N522-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the cover in the inner-V, refer to Removing .

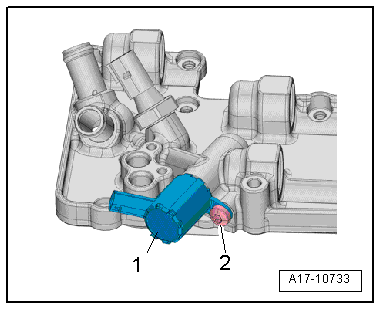

-- Remove the bolt -2- and then remove the Piston Cooling Nozzle Control Valve -N522- item -1-.
