Cover In The Inner-V, Removing And Installing: Removing
WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the housing for the charge air cooler, refer to CHARGE AIR COOLER HOUSING, REMOVING AND INSTALLING .

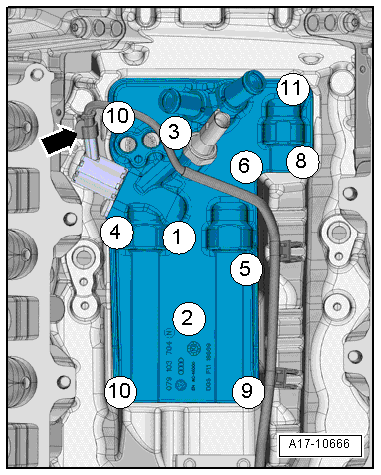

-- Disconnect the connector -3-.
-- Remove the bolts -1- and then remove the hose lines.
-- Loosen the hose clamps to remove the oil return hose -2-.
-- Remove the bolts in the following sequence -11 to 1-, and then remove the cover in the inner-V.
-- Disconnect the connector -arrow- and free up the wire.
