Crankshaft Seal, Replacing, Transmission Side: Procedure

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Prying Out Sealing Ring Using Extractor Lever T20143/2

Courtesy of AUDI OF AMERICA, LLC

Transmission removed, refer to Transmission Park Selector SwitchF305, Removing and Installing .

-- Remove the drive plate, refer to Removing .

-- Pry out the shaft seal using Puller - Crankshaft/Power Steering Seal T20143/2.

-- Clean the running and sealing surface.

Fig 2: Guide Piece T10122/6 And Push Shaft Seal

Courtesy of AUDI OF AMERICA, LLC

-- Insert the Seal Installer - Crankshaft - Assembly Tool T10122/1 on the Seal Installer - Crankshaft - Guide Piece T10122/6 and push the shaft seal -A- on the guide piece.

-- Remove the Seal Installer - Crankshaft - Assembly Tool T10122/1.

-- Position the Seal Installer - Crankshaft - Guide Piece T10122/6 on the crankshaft.

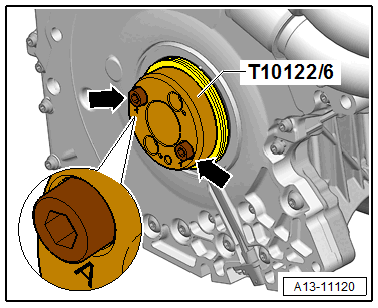

Fig 3: Identifying Seal Installer - Crankshaft - Guide Piece T10122/6

Courtesy of AUDI OF AMERICA, LLC

-- Attach the Guide Piece through the mounting points -A- with the bolts -arrows- on the crankshaft.

CAUTION:

There is a rick of leaks due to incorrect assembly.

To prevent the shaft seal sealing lip from rolling onto itself, insert the shaft seal by hand on the crankshaft.

-- Push the shaft seal by hand using the Seal Installer - Crankshaft - Guide Piece T10122/6 on the crankshaft.

-- Press shaft seal in evenly all around with Seal Installer - Crankshaft - Thrust Sleeve T10122/5 until flush.

Fig 4: Install Shaft Seal In Evenly All Around With Thrust Piece T10122/5 Until Flush

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Seal Installer - Crankshaft - Guide Piece T10122/6.

-- Check the shaft seal as well as the sealing lip for correct seating. If the sealing lip are partially turned repeat the procedure with a new shaft seal.

-- Install the drive plate, refer to Installing .
