Overview - Seat Bench/Single Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

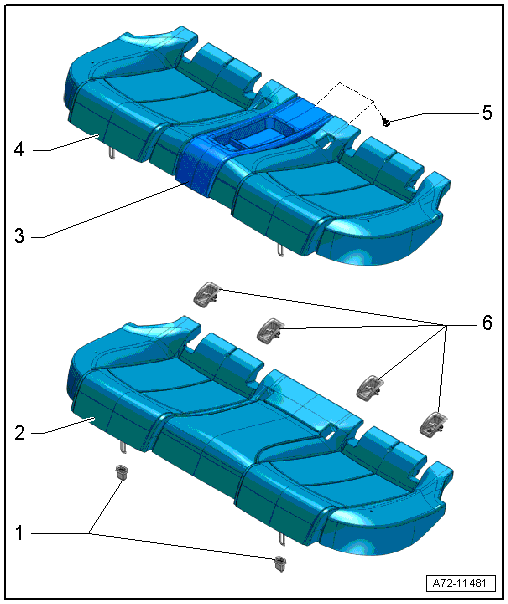

Fig 1: 2 Grommets

Courtesy of AUDI OF AMERICA, LLC

Grommets
- Quantity: 2
- For fastening the rear seat bench
- Clipped into the vehicle floor
- Replace each time the rear seat bench is removed
  NOTE:
  The floor panel, into which the mounting grommets are inserted, and the wire frame of the bench seat must be checked after every disassembly of the rear bench seat and be readjusted in the case of deformation.
- For checking and readjusting the wire frame, refer to FLOOR PANEL FOR REAR BENCH SEAT MOUNTING GROMMETS AND WIRE FRAME, CHECKING AND ALIGNING .
Rear Bench Seat
- Vehicles with Standard
- Removing and installing. Refer to REAR BENCH SEAT, REMOVING AND INSTALLING .
  NOTE:
  The floor panel, into which the mounting grommets are inserted, and the wire frame of the bench seat must be checked after every disassembly of the rear bench seat and be readjusted in the case of deformation.
- For checking and readjusting the wire frame, refer to FLOOR PANEL FOR REAR BENCH SEAT MOUNTING GROMMETS AND WIRE FRAME, CHECKING AND ALIGNING .
Center Storage Compartment
- Removing and installing. Refer to CENTER STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Rear Seat Bench - Super Sport Seat
- Version with center storage
- Removing and installing. Refer to REAR BENCH SEAT, REMOVING AND INSTALLING .
  NOTE:
  The floor panel, into which the mounting grommets are inserted, and the wire frame of the bench seat must be checked after every disassembly of the rear bench seat and be readjusted in the case of deformation.
- For checking and readjusting the wire frame, refer to FLOOR PANEL FOR REAR BENCH SEAT MOUNTING GROMMETS AND WIRE FRAME, CHECKING AND ALIGNING .
Bolt
- 2.8 Nm
- Quantity: 2
Guides
- For the LATCH child seat anchor
- clipped to the LATCH child seat anchorage brackets that are welded to the floor
