Overview - Seat Pan, Sill Panel/Tunnel Side Seat Side Trim
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
Standard Seat/Sport Seat (Manual)
- Front Seat
- Expanding Rivet
- Tunnel-Side Trim
- Removing and installing. Refer to SEAT SIDE TRIM ON THE TUNNEL SIDE, REMOVING AND INSTALLING .
- Expanding Rivet
- Hand Wheel
- For backrest adjustment
- Removing and installing. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE, REMOVING AND INSTALLING, FRONT SEAT (MANUAL) .
- Press on until it engages audibly
- Seat Height Adjustment Handle
- Removing and installing. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
- Push the handle all the way on
- Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side: Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Equipment levels
- Overview. Refer to OVERVIEW - SEAT PAN, SEAT ADJUSTMENT ACTUATOR/SWITCH .
- Sill-Side Trim
- Removing and installing. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE, REMOVING AND INSTALLING, FRONT SEAT (MANUAL) .
Power Standard Seat/Sport Seat/Super Sport Seat
- Front Seat
- Expanding Rivet
- Tunnel-Side Trim
- Removing and installing. Refer to SEAT SIDE TRIM ON THE TUNNEL SIDE, REMOVING AND INSTALLING .
- Expanding Rivet
- Expanding Rivet
- Driver Seat Adjustment Control Head -E470-
- Front passenger side: Front Passenger Seat Adjustment Control Head -E471-
- Overview. Refer to OVERVIEW - SEAT PAN, SEAT ADJUSTMENT ACTUATOR/SWITCH .
- Driver Seat Adjustment Control Head -E470-
- Front passenger side: Front Passenger Seat Adjustment Control Head -E471-
- Overview. Refer to OVERVIEW - SEAT PAN, SEAT ADJUSTMENT ACTUATOR/SWITCH .
- Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side: Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Overview. Refer to OVERVIEW - SEAT PAN, SEAT ADJUSTMENT ACTUATOR/SWITCH .
- Sill-Side Trim
- Removing and installing. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE, REMOVING AND INSTALLING, FRONT SEAT (POWER) .
- Attach to the bracket and storage compartment

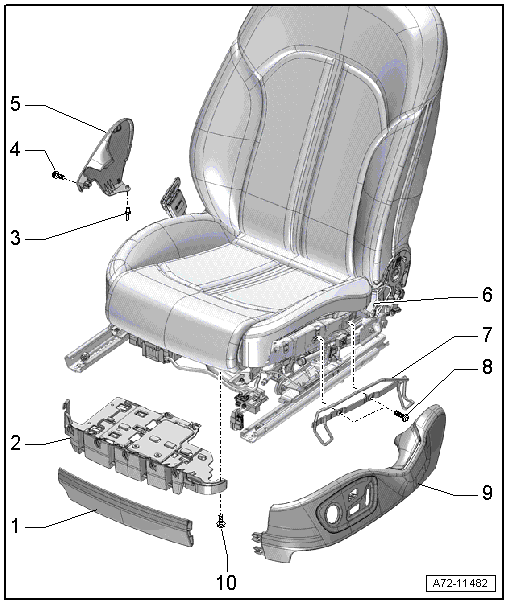

Multicontour Seat
- Front Trim
- Removing and installing. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE/FRONT SEAT TRIM, REMOVING AND INSTALLING, MULTICONTOUR SEAT .
- Bracket
- For front trim, compressor and multicontour seat control module
- Removing and installing. Refer to FRONT SEAT TRIM BRACKET/COMPRESSOR/CONTROL MODULE, REMOVING AND INSTALLING, MULTICONTOUR SEAT .
- To replace, install the compressor for the multicontour seat into the new bracket
- Expanding Rivet
- Bolt
- 6.5 Nm
- Clean the threaded hole with a thread tap.
- Install with locking compound. For the correct locking compound .
- Tunnel-Side Trim
- Removing and installing. Refer to SEAT SIDE TRIM ON THE TUNNEL SIDE, REMOVING AND INSTALLING .
- Front Seat
- Bracket
- For sill side trim
- Removing and installing. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE/FRONT SEAT TRIM, REMOVING AND INSTALLING, MULTICONTOUR SEAT .
- Bolt
- 8 Nm
- Quantity: 2
- Sill-Side Trim
- Removing and installing. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE/FRONT SEAT TRIM, REMOVING AND INSTALLING, MULTICONTOUR SEAT .
- Lock into the bracket and to the trim
- Bolt
- 3.5 Nm
- Quantity: 2
- Threaded holes for bolts must be cleaned, for example, with a thread tap
- Install with locking compound. For the correct locking compound .
