Overview - Seat Pan, Seat Adjustment Actuator/Switch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Standard Seat/Sport Seat/Super Sport Seat:

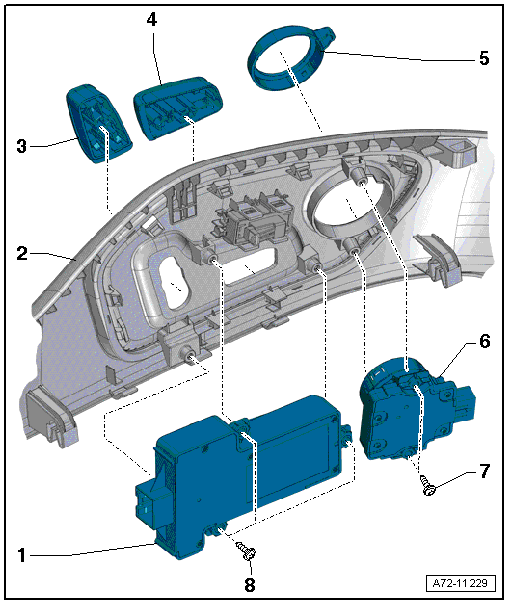

Fig 1: Identifying Adjustment Controls And Switches

Courtesy of AUDI OF AMERICA, LLC

Sill-Side Trim
- Removing and installing. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE, REMOVING AND INSTALLING, FRONT SEAT (POWER) .
Actuator
- For backrest adjustment
- Equipment levels
- Clipped on
- Removing and installing. Refer to SEAT ADJUSTMENT CONTROL HEAD, REMOVING AND INSTALLING .
Actuator
- For seat adjustment
- Equipment levels
- clipped on
- Removing and installing. Refer to SEAT ADJUSTMENT CONTROL HEAD, REMOVING AND INSTALLING .
Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side: Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Removing and installing. Refer to DRIVER/FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH -E176- / -E177-, REMOVING AND INSTALLING .
Bolt
- 0.8 Nm
- Quantity: 2
Bolt
- 0.8 Nm
- Quantity: 3
Driver Seat Adjustment Control Head -E470-
- with:
  - Driver Backrest Adjustment Switch -E96-
  - Driver Seat Angle Adjustment Switch -E222-
  - Driver Seat Forward/Back Adjustment Switch -E363-
  - Driver Seat Height Adjustment Switch -E364-
- Front passenger side: Front Passenger Seat Adjustment Control Head -E471- with:
  - Front Passenger Seat Forward/Back Adjustment Switch -E64-
  - Front Passenger Backrest Adjustment Switch -E98-
  - Front Passenger Seat Angle Adjustment Button -E334-
  - Front Passenger Seat Height Adjustment Switch -E365-
- Equipment levels
- Removing and installing. Refer to SEAT ADJUSTMENT CONTROL HEAD, REMOVING AND INSTALLING .

Multicontour Seat

Fig 2: Overview - Seat Pan, Seat Adjustment Actuator/Switch

Courtesy of AUDI OF AMERICA, LLC

Driver Seat Switch Module -E663-
- with:
  - Driver Backrest Adjustment Switch -E96-
  - Driver Headrest Adjustment Button -E155-
  - Driver Seat Angle Adjustment Switch -E222-
  - Driver Seat Forward/Back Adjustment Switch -E363-
  - Driver Seat Height Adjustment Switch -E364-
- Front passenger side: Front Passenger Seat Switch Module -E664- with:
  - Front Passenger Seat Forward/Back Adjustment Switch -E64-
  - Front Passenger Backrest Adjustment Switch -E98-
  - Front Passenger Headrest Adjustment Switch -E170-
  - Front Passenger Seat Angle Adjustment Button -E334-
  - Front Passenger Seat Height Adjustment Switch -E365-
- Removing and installing. Refer to SEAT ADJUSTMENT CONTROL HEAD, REMOVING AND INSTALLING .
Sill-Side Trim
- Removing and installing. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE/FRONT SEAT TRIM, REMOVING AND INSTALLING, MULTICONTOUR SEAT .
Actuator
- For backrest adjustment
- Clipped on
- Removing and installing. Refer to SEAT ADJUSTMENT CONTROL HEAD, REMOVING AND INSTALLING .
- Press on until it engages audibly
Actuator
- For seat adjustment
- Clipped on
- Removing and installing. Refer to SEAT ADJUSTMENT CONTROL HEAD, REMOVING AND INSTALLING .
- Press on until it engages audibly
Rocker
- For Driver Seat Switch Module 2 -E667- / Front Passenger Seat Switch Module 2 -E668-
- Clipped on
- Removing and installing. Refer to DRIVER SEAT SWITCH MODULE 2 -E667- / FRONT PASSENGER SEAT SWITCH MODULE 2 -E668-, REMOVING AND INSTALLING .
Driver Seat Switch Module 2 -E667-
- Front passenger side: Front Passenger Seat Switch Module 2 -E668-
- Removing and installing. Refer to DRIVER SEAT SWITCH MODULE 2 -E667- / FRONT PASSENGER SEAT SWITCH MODULE 2 -E668-, REMOVING AND INSTALLING .
Bolt
- 0.8 Nm
- Quantity: 2
Bolt
- 0.8 Nm
- Quantity: 3
