Overview - Seat Pan, Seat Angle Adjuster

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Standard Seat/Sport Seat (Manual)

Fig 1: Identifying Seat Angle Adjuster Overview

Courtesy of AUDI OF AMERICA, LLC

Handle
- For seat inclination adjustment
- Removing and installing. Refer to SEAT ANGLE ADJUSTMENT HANDLE, REMOVING AND INSTALLING .
- Press until it engages completely
Clip
- Replace the seat angle adjustment handle each time it is removed
- Installed position, refer to Installing
Bolt
- 6.5 Nm
- Self-locking
- Replace
- Threaded holes for bolts must be cleaned, for example, with a thread tap
Shoulder Pin
- 6 Nm
- Self-locking
- Replace
- Threaded hole for shoulder pin must be cleaned, for example, with thread cutter
Seat Angle Adjuster
- Removing and installing. Refer to SEAT ANGLE ADJUSTER, REMOVING AND INSTALLING .

Standard Seat/Sport Seat/Super Sport Seat/Multicontour Seat (Power)

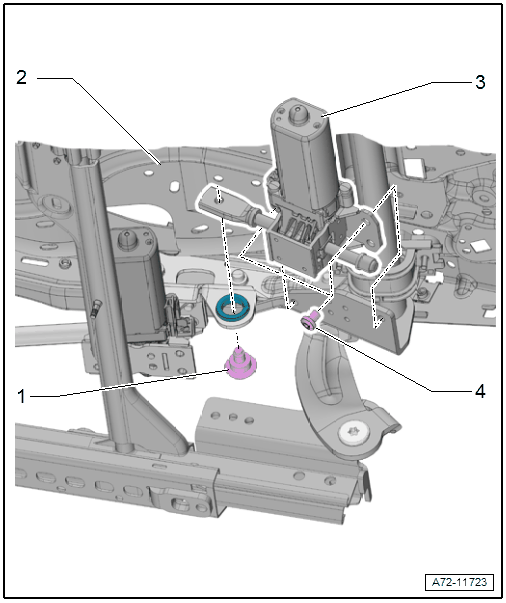

Fig 2: Identifying Seat Angle Adjuster Overview

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 20 Nm
- Self-locking
- Replace
- Clean the threaded hole with a thread tap.
Seat Pan
Driver Seat Angle Adjustment Motor -V243-
- Front passenger side: Front Passenger Seat Angle Adjustment Motor -V244-
- Removing and installing. Refer to SEAT ANGLE ADJUSTMENT MOTOR, REMOVING AND INSTALLING .
Bolts
- 10 Nm
- Quantity: 2
- Self-locking
- Replace
- Threaded holes for bolts must be cleaned, for example, with a thread tap
