Lumbar Support Adjustment Motors -V125- / -V126- / -V129- / -V130-, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

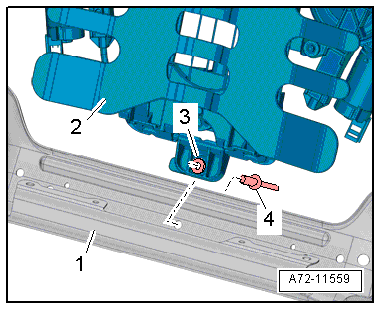

-- Attach the upper lumbar support -1- in the backrest frame -2- -arrows- and move it down and to the rear.

-- Make sure the metal washer -3- is inserted into the lumbar support -2- from the front before riveting -4-.

Fig 1: Upper Lumbar Support, Backrest Frame & Lumbar Support

Courtesy of AUDI OF AMERICA, LLC

-- Rivet lumbar support to the backrest frame.

Installation is performed in reverse order of removal, while noting the following:

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
Observe all measures when installing the front seat. Refer to Installing .
