MULTICONTOUR Seat Compressor Bonded Rubber Bushing, Removing And Installing, KONGSBERG MULTICONTOUR Seat: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Remove front trim bracket, compressor and multicontour seat control module. Refer to Removing .
-- Remove the supercharger. Refer to Removing .
WARNING:
Danger of eye injury.
- Wear protective eyewear.

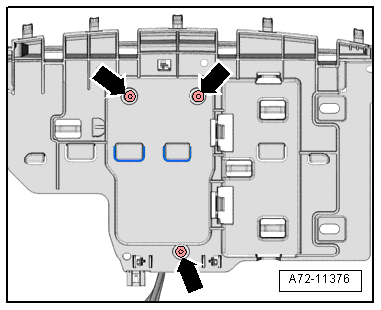

-- Drill out the rivets -arrows- and remove the multicontour seat compressor bonded rubber bushing.
