Spare Wheel Well Trim, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear cross panel trim. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .
-- Vehicles with a spare wheel: Remove the spare wheel.
-- Remove the vehicle tool kit mount.

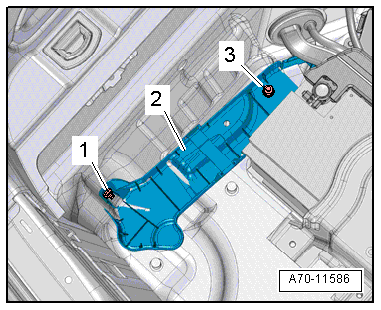

-- Version with vehicle jack: Remove the vehicle jack and jack mount -2- by removing bolts -1- and -3-.
-- Version with tire mobility kit: Remove the tire mobility kit.
-- Version with subwoofer: Remove the subwoofer. Refer to SUBWOOFER - R211-, REMOVING AND INSTALLING .
-- Pull out the spare wheel side well trim -1- under the luggage compartment side trim panels -2-, -3- -arrows- and remove them upward.

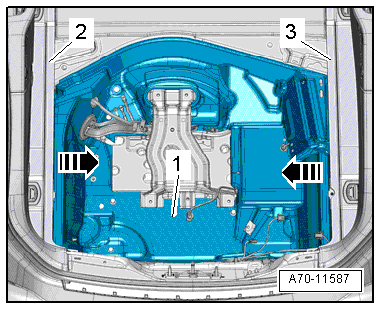

Fig 2: Removing Spare Wheel Side Well Trim -1- Under Luggage Compartment Side Trim Panels -2-, -3- -Arrows-
NOTE:
Loosen the bolts on the rear tie down if it is difficult to remove the trim panel. Refer to TIE DOWN, REMOVING AND INSTALLING .
