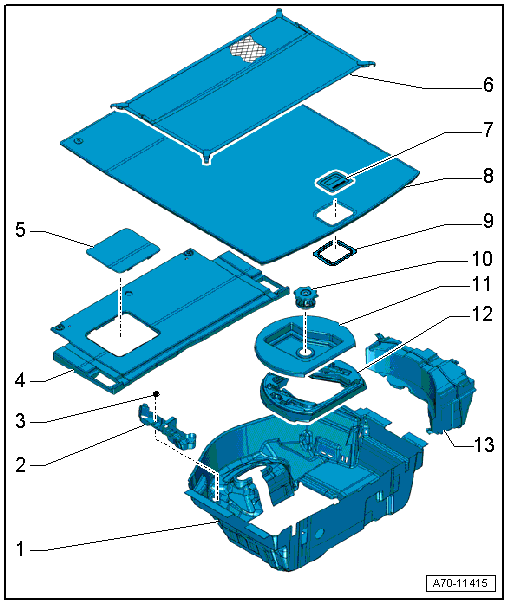

Overview - Luggage Compartment Floor
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Spare Tire Well Trim
- Removing and installing. Refer to SPARE WHEEL WELL TRIM, REMOVING AND INSTALLING .
- Vehicle Jack/Break-Down Kit
- Equipment levels
- Nut
- 8 Nm
- Quantity: 2
- Frame
- For rear panel sill
- Removing and installing. Refer to REAR PANEL SILL FRAME, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Cover
- For the locking flange
- Cargo net
- Attach to the tie downs
- Handle
- For the luggage compartment floor mat
- Removing and installing. Refer to REAR LUGGAGE COMPARTMENT FLOOR HANDLE, REMOVING AND INSTALLING .
- Luggage Compartment Floor Covering
- Removing and installing. Refer to LUGGAGE COMPARTMENT FLOOR PANEL, REMOVING AND INSTALLING .
- Frame
- For luggage compartment floor covering handle
- Can be pressed down in one position on luggage compartment floor covering handle.
- Nut
- For spare wheel mounting
- Cover
- For the vehicle tool kit
- Vehicle Tool Kit
- Equipment levels
- Subwoofer
- Equipment levels
- Removing and Installing. Refer to SUBWOOFER - R211-, REMOVING AND INSTALLING .
