Control Module Upper Frame: Installation
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Tightening specification, refer to LUGGAGE COMPARTMENT RELAY AND FUSE CARRIER AND CONTROL MODULES OVERVIEW .
Install in reverse order of removal. Note the following:

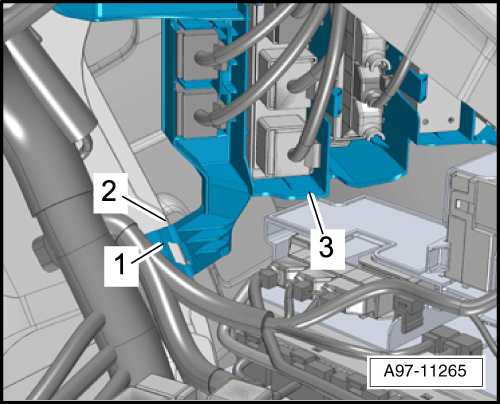

-- The guide -1- for the frame -3- must fit into the body -2-.
-- Install the cover for the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
