Control Module Lower Frame: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

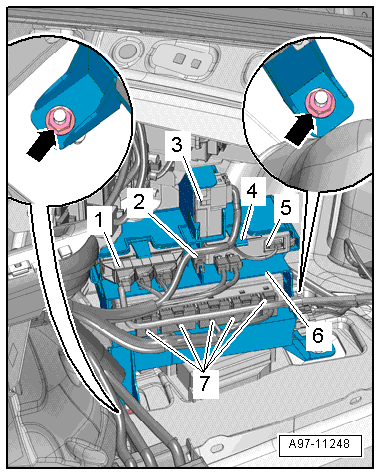

Fig 1: Identifying Spring, Connectors, Nuts And Frame

Courtesy of AUDI OF AMERICA, LLC

-- Remove the relay and fuse panel F. The relay panels remain clipped in. Refer to REMOVAL .

-- Free up the wiring harness -2-.

-- Release the spring -4- and remove the control modules -1, 3 and 5-.

-- Disconnect the connectors -7- from the Level control system control module -J197- (if equipped).

-- Remove the nuts -arrows- and the frame -6- with the control modules.

-- Disconnect the connector and antenna connector from the Rearview camera system control module -J772- (if equipped).
